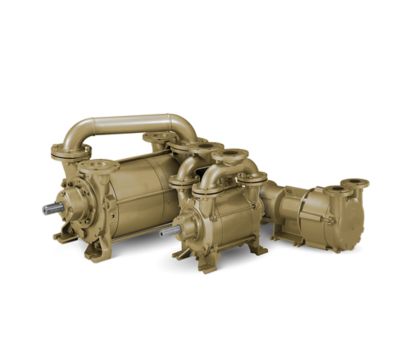

High-Efficiency Liquid Ring Vacuum Pumps and Compressors
Single-Stage Vacuum Pump Design
Dekker offers the Titan single-stage high-efficiency liquid ring vacuum pumps, capable of vacuum levels up to 29” HgV. The pump features a variable discharge port design, which adjusts automatically to the internal compression ratio of the vacuum pump resulting in maximum efficiency throughout the vacuum range. Advanced fluid dynamics result in high volumetric efficiency with 50% less seal-liquid requirement.
Two-Stage Vacuum Pumps Design
The Dekker Titan two-stage liquid ring vacuum pumps offer excellent efficiency when pumping saturated vapors at vacuum levels from 25” up to 29” HgV. The two-stage pump operates more efficiently than the single-stage design when pumping mixtures of air and condensable vapors above 25” HgV.
Key features
HEAVY-DUTY DESIGN
Dekker liquid ring vacuum pumps are built to ISO9001 quality standards. Rigid impellers fitted on a heavy-duty shaft, supported by oversized radial bearings offer reliable operation under the most adverse conditions. Mechanical shaft seals are standard on Dekker liquid ring vacuum pumps.
NO METAL-TO-METAL CONTACT
The design of the liquid ring vacuum pump is most noted for its ability to handle soft solids and entrained liquids or vapors without causing damage to the pump. This is because there is no metal-to-metal contact between the rotating parts and the casing, eliminating the need for internal lubrication.
LOW NOISE LEVELS
Most liquid ring pumps operate at speeds of 1800 RPM or less. For this reason and because the pump has no metal-to-metal contact, liquid ring pumps are among the quietest pumps in the industry with noise levels in the 68 - 80 dBA range.
- Technical specification
| Single-stage vacuum pumps | |
| Nominal Capacity | 6 - 1,200 CFM |
| Motor Size | 0.75 - 100 HP |
| Two-stage vacuum pumps | |
| Nominal Capacity | 15 - 1,000 CFM |
| Motor Size | 2 - 100 HP |
| Single-stage compressors | |
| Nominal Capacity | 15 - 1,100 CFM |
| Motor Size | up to 150 HP |
| Pressure | up to 28 psig |
